Debunking Rumors! Why Did Your PE System Suddenly Collapse? Uncovering the Underlying Logic of UEFI Secure Boot and the 2026 Certificate Renewal Storm!
Debunking the Myth! Why Did Your PE Systems Suddenly All Fail? Exposing the UEFI Secure Boot Underlying Logic and the 2026 Certificate Overhaul Storm!
Table of Contents
- Core Misconception: Where Are the Certificates Really Stored?
- The Culprit: Why Old PE Systems Are Blocked from Booting—It’s Not “Old Age”!
- A Wolf in Sheep’s Clothing? Why “Frankenstein” Systems Are Doomed to Blue Screen
- Fresh Perspective | The 2026 Certificate Overhaul: Should We Panic?
- It’s Microsoft’s Business, But Not Entirely
- Facing the Tide of Change: What Should We Ops Engineers Do?
If you’re a technician who frequently deals with system reinstallation and IT operations, you’ve likely encountered this frustrating scenario in the past year or two: You plug in a USB PE system that worked perfectly before into a brand-new computer or a motherboard with a freshly updated BIOS, only to be mercilessly blocked at boot with a glaring red “Secure Boot Violation” warning.
What’s even more anxiety-inducing for the operations community is the frequent buzz in the IT industry that “Microsoft’s core certificates will expire in 2026, rendering a large number of legacy systems unbootable.”
Is this alarmism, or a fundamental technological reshuffle?
Today, we’ll thoroughly dismantle the ultimate defense line standing between the operating system and the hardware motherboard—UEFI Secure Boot.
After reading this article, you’ll not only understand the root cause of the error but also gain insight into the silent security game between Microsoft, PC motherboard manufacturers, and the Linux ecosystem.
Core Misconception: Where Are the Certificates Really Stored?
Many tech enthusiasts, when encountering a Secure Boot block, instinctively look for “expired certificate files” in the hard drive’s EFI System Partition (ESP). This is an extremely common misconception.
In the operating system boot process, “certificates” and “EFI boot files” exist in two completely different forms, stored in physically isolated areas—hardware and software:
1. The hard drive’s EFI partition does NOT store certificates; it stores “digitally signed EFI programs.” The files we commonly see, such as bootmgfw.efi (Windows Boot Manager) or winload.efi (Windows kernel loader), are essentially executable programs, i.e., software. When Microsoft releases these files, it calculates the file’s hash using a private key and appends this encrypted “digital signature code” to the end of the .efi program. It is intrinsically tied to the program—any single byte alteration will invalidate the signature.

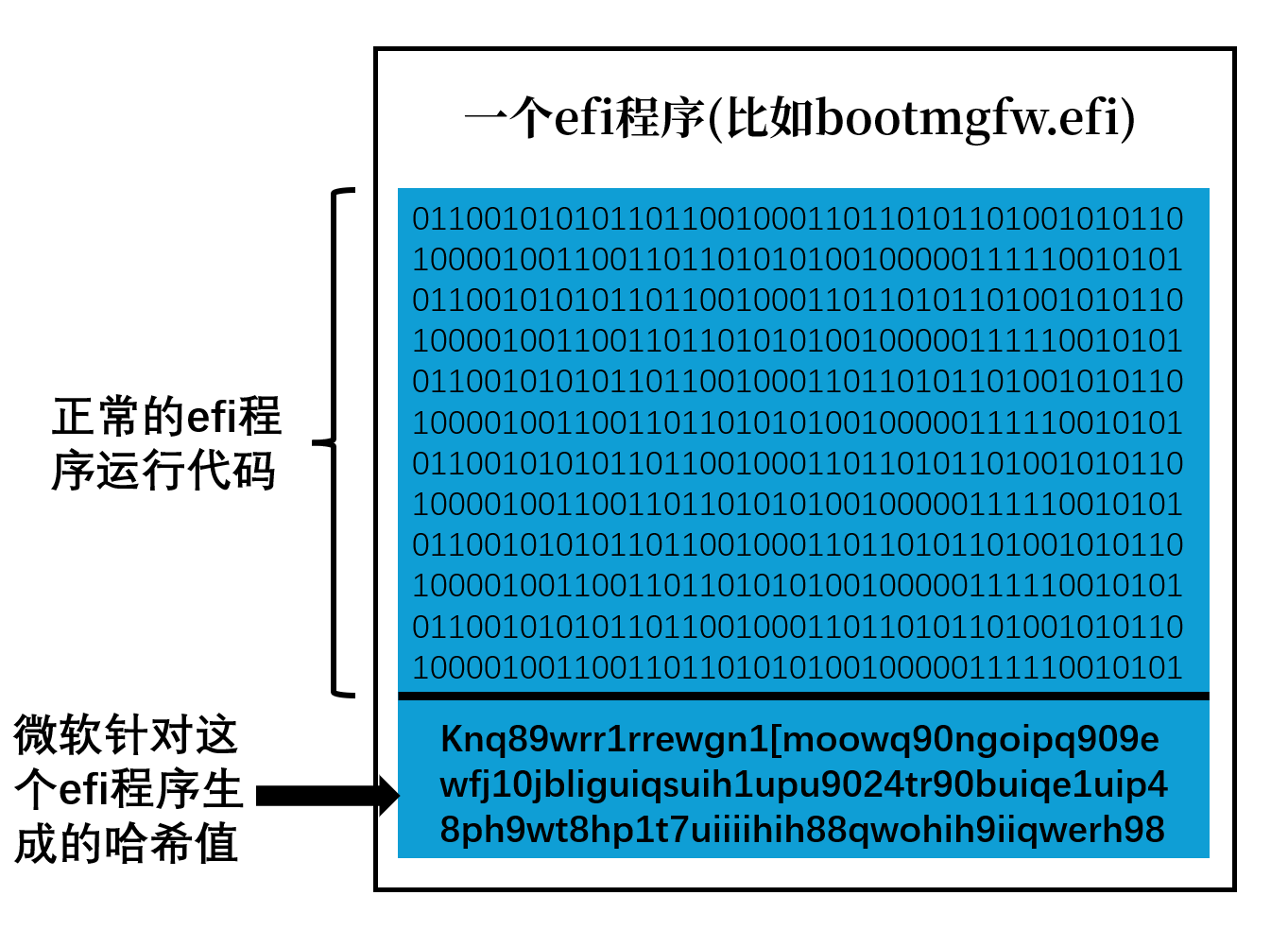

The image below clearly illustrates the strong binding relationship between the hash of an EFI program and the EFI program itself:
2. The real certificates are hard-coded into the motherboard’s NVRAM. The motherboard’s NVRAM (Non-Volatile Random Access Memory) contains a protected storage area dedicated to UEFI Secure Boot verification rules. This area contains no program code, only two core databases:
- db (Allow List): This stores X.509 format public key entities. For example, the famous
Microsoft Windows Production PCA 2011certificate resides here. When the motherboard boots, it extracts the signature from the.efifile and uses the public key indbto decrypt and verify it. - dbx (Deny List): This stores revoked certificates and hash values of
.efifiles with known security vulnerabilities.
※※※The verification logic of Secure Boot is ruthlessly simple: The signature of the EFI boot program must be in the db allow list; simultaneously, the hash of that EFI program must not appear in the dbx deny list. In this verification, dbx holds a veto power.
The Culprit: Why Old PE Systems Are Blocked from Booting—It’s Not “Old Age”!
Understanding the relationship between db and dbx allows us to debunk the second myth: “Did my old PE system die on the new computer because its certificate expired?”
The answer is no. What truly kills old PE systems is not the natural aging of certificates, but the deadly dbx deny list issued by Microsoft.
In recent years, the security world has seen extremely severe low-level boot vulnerabilities (e.g., the infamous BlackLotus vulnerability). Hackers can exploit these vulnerabilities to bypass Secure Boot and gain the highest control over a computer before the Windows kernel even loads.
Faced with this threat, Microsoft adopted the following strategy:
- Microsoft extracted the hash values of all legacy
bootmgfw.efifiles released in recent years that contain such vulnerabilities. - Microsoft packaged these signatures into the latest
dbxdeny list. - New computers manufactured from 2024 onwards have this most comprehensive
dbxdeny list pre-written into their NVRAM at the factory.
This latest dbx deny list was silently written into the motherboard’s NVRAM by Windows during the latest system update in May 2026.
When your old USB PE tries to boot on a new computer, the motherboard checks: although your signature was indeed issued by Microsoft years ago (db verification passes), your file’s hash is now listed in dbx. Therefore, it’s vetoed, blocked, and denied boot.
The old PE was executed by dbx, not retired by old age.
A Wolf in Sheep’s Clothing? Why “Frankenstein” Systems Are Doomed to Blue Screen
Knowing why old PEs die, many tinkering geeks immediately think of a “brilliant” workaround: Since the motherboard only blocks old, vulnerable bootmgfw.efi, why not extract the latest bootmgfw.efi boot file from a modern Windows 11 system, replace it in the old PE’s USB drive, and trick the motherboard into booting the old PE kernel?
Do not do this. Under the modern Windows boot architecture, forcibly stitching a new loader with an old kernel will almost certainly result in an instant blue screen at boot.
Because Secure Boot is not a one-time check; it’s a continuous “chain of trust” from start to finish.
- First Obstacle: Anti-Downgrade Mechanism
Microsoft has not only fixed vulnerabilities in the latest Boot Manager (bootmgfw.efi) and kernel loader (winload.efi) but has also embedded strict verification policies. When bootmgfw.efi is about to hand over control to winload.efi, if it detects that winload.efi and the old kernel version are below a certain baseline, or that the system contains old driver signatures, bootmgfw.efi will actively refuse to load and trigger a blue screen.
- Second Obstacle: Structural Discontinuity in Underlying Handoff Data
During the OS boot process, winload.efi is responsible for collecting hardware information, memory layout, etc., packaging them into an extremely complex data structure, and then handing it off to the system kernel (ntoskrnl.exe). The critical point is that the format of this data structure changes between different generations of the Windows kernel. Using a 2024 loader to hand off data to a 2019 kernel means the old kernel simply cannot parse the data correctly, resulting in an inevitable blue screen.
Therefore, to bypass Secure Boot blocks on new motherboards, you must never use a “new bootloader + old kernel” hybrid approach. You must replace the entire PE/Windows image with a fully updated, original, and matching set of internal components.
Fresh Perspective | The 2026 Certificate Overhaul: Should We Panic?
Next, let’s address the most concerning and panic-inducing question in the system-building community: The 2026 Certificate Overhaul Storm.
The first batch of UEFI Secure Boot core certificates issued by Microsoft in 2011 have a cryptographic validity period of 15 years, expiring on June 24, 2026. Many self-media outlets have exclaimed that after this date, all old computers will be unbootable.
This is a complete misunderstanding of cryptographic mechanisms. To understand this, we must introduce a core concept: Timestamp.
At the moment Microsoft digitally signs a bootmgfw.efi file, in addition to applying the “certificate public key,” it also stamps an immutable “signing time” via an authoritative timestamp server.
※※※When the motherboard performs Secure Boot verification, the criterion for determining the legality of an EFI boot program is: At the moment the timestamp was applied, was the certificate within its validity period?
Pay close attention to the wording in the sentence above:
“At that moment” “validity period”.
- For Historical Files (Past): Suppose you have a PE boot drive created in 2022 (and the hash of its
bootmgfw.efiis not in thedbxdeny list). Even if the time is now 2027, the motherboard will check and find: “Although this certificate is now expired, this EFI program was signed in 2022 (the timestamp was applied in 2022). In 2022, this certificate was completely valid.” Verdict: Allow, boot. - For Future Files (Future): If, after the certificate expires in 2026, someone tries to use this old key to sign a new patch file. The motherboard checks: “Your signing time is 2027, but this certificate was revoked in 2026.” Verdict: Invalid, block.
※※※Therefore, certificate expiration will not kill your existing legitimate PE systems; its purpose is to force the industry to upgrade security.
Microsoft and motherboard manufacturers are currently, via Windows Update and BIOS updates, aggressively injecting new root certificates (2023/2026 versions) into the motherboard’s db allow list. This ensures that brand-new Windows systems and security patches released after 2026 will be recognized by your motherboard. Old certificates will naturally expire over time, completely eliminating the risk of old encryption algorithms being brute-forced in a future era of explosive computing power.
What prevents your old PE system from booting is absolutely not the expired certificate, but the fact that the hash of its boot program bootmgfw.efi has been added to the dbx deny list.
It’s Microsoft’s Business, But Not Entirely
If you think UEFI Secure Boot is just a Microsoft-directed Windows solo act, you are sorely mistaken. This low-level security game profoundly affects the entire x86 PC architecture, including Linux.
In the global UEFI Secure Boot ecosystem, Microsoft plays not just the role of an OS developer but also the highest certification authority (Root CA). 99% of PC motherboards worldwide come from the factory with only Microsoft’s root certificate in their db allow list.
This creates a highly dramatic situation: For Linux (e.g., Ubuntu, Fedora) to boot on mainstream PCs, it must develop a boot program called shim and then pay Microsoft to sign it, specifically using the Microsoft Third-Party UEFI CA.
Similarly, when Linux suffers a severe low-level boot vulnerability (e.g., the famous GRUB2 BootHole vulnerability in 2020), it is still Microsoft that generates and publishes the dbx deny list.
So, how do pure Linux computers receive these deny list updates? They are not abandoned; they have their own independent “logistics system.”
Within the Linux ecosystem, major distributions use the LVFS platform, combined with the system’s built-in fwupd background service or package manager (e.g., the secureboot-db package in Debian-based systems), to download the latest dbx updates (signed by Microsoft) from the server and write them directly into the motherboard’s NVRAM.
The motherboard’s UEFI only recognizes Microsoft’s cryptographic signature; it doesn’t care whether the update package was delivered by Windows Update or by a Linux terminal command.
Facing the Tide of Change: What Should We Ops Engineers Do?
Having understood the complex allow/deny lists, chain of trust, and timestamp mechanisms of UEFI Secure Boot, we can summarize two effective strategies for daily IT operations:
Option 1: Disable Secure Boot! Enter the motherboard BIOS/UEFI settings, find the
Securitytab, and set Secure Boot toDisabled. Once Secure Boot is disabled, the motherboard completely stops checking thedbxdeny list anddballow list, and the anti-downgrade mechanism for new bootloaders loading old kernels is also nullified.Option 2: Keep Your PE System Up-to-Date. Completely abandon old PE systems. In the hardware ecosystem post-2024, ensure your installation USB drive and PE images are built from the latest Windows kernel versions (e.g., Win11 23H2 / 24H2, etc.).
Understanding this, you are no longer just an operator who can install systems; you are an architect who truly grasps the underlying logic of computers.
Thank you for reading.
Will you simply disable Secure Boot, or will you keep pace with the times and update your PE and Windows systems? Feel free to share your thoughts in the comments!
